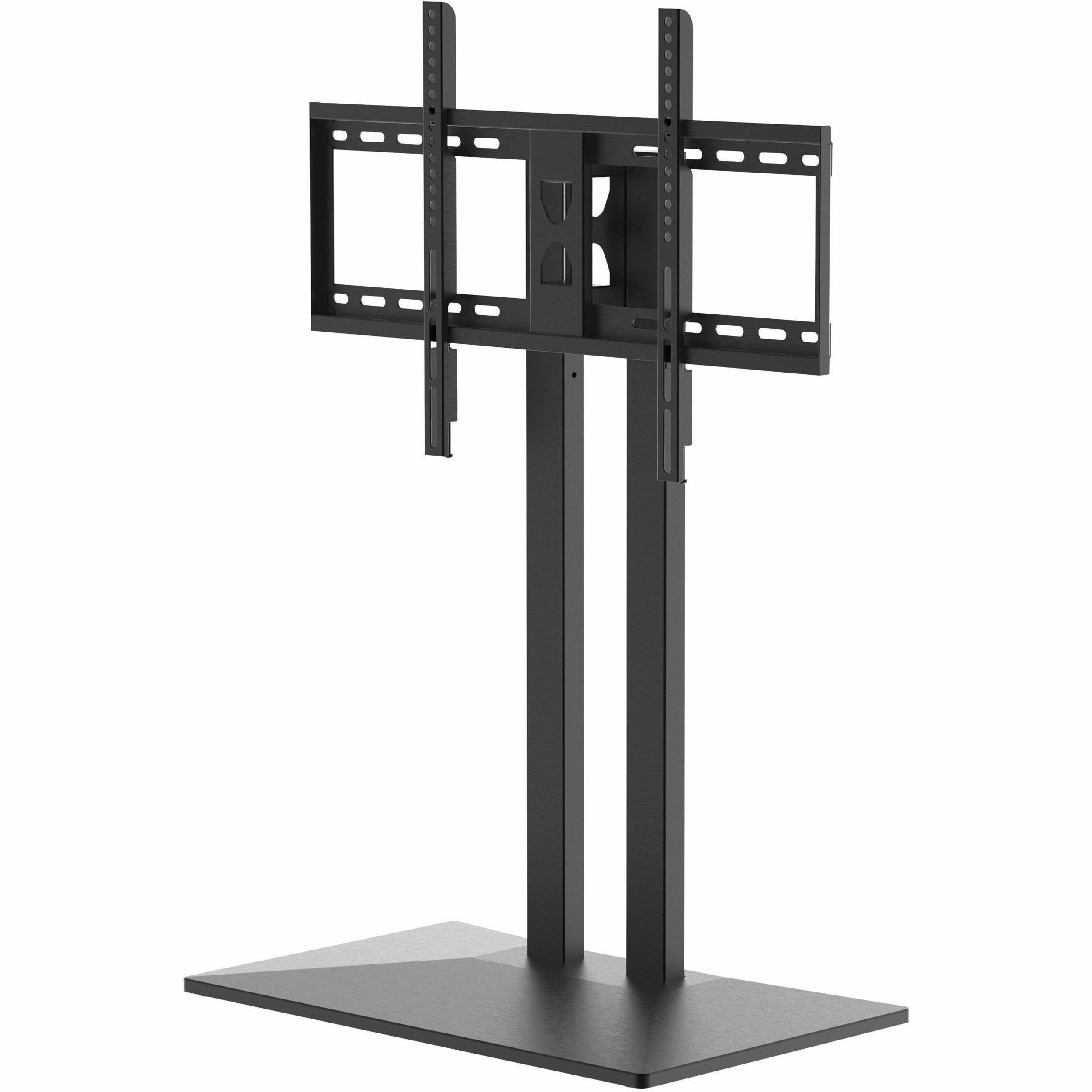

TTS6X4
The TTS6X4 Universal TV Stand provides ±25° of swivel to position your TV at the perfect viewing angle. The universal adaptor plate provides compatibility up to a 600 x 400mm VESA® pattern, and it can be mounted at three different heights to seamlessly accommodate your TV. The built-in swivel is located at the top of the tilt head so the base of the stand never moves, just your TV.
BIM Model
Maximum Screen Size Supported
Maximum Load Capacity
Mounting Pattern
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
The TTS6X4 Universal TV Stand provides ±25° of swivel to position your TV at the perfect viewing angle. The universal adaptor plate provides compatibility up to a 600 x 400mm VESA® pattern, and it can be mounted at three different heights to seamlessly accommodate your TV. The built-in swivel is located at the top of the tilt head so the base of the stand never moves, just your TV.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | TTS6X4 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | TruVue™ |
| Product Series | TTS6X4 |
| Product Model | TTS6X4 |
| Product Name | Universal TV Stand with Swivel for 55" to 85" TVs |
| Marketing Information | The TTS6X4 Universal TV Stand provides ±25° of swivel to position your TV at the perfect viewing angle. The universal adaptor plate provides compatibility up to a 600 x 400mm VESA® pattern, and it can be mounted at three different heights to seamlessly accommodate your TV. The built-in swivel is located at the top of the tilt head so the base of the stand never moves, just your TV. |
| Packaged Quantity | 1 Unit |
| Product Type | TV Stand |
Technical Information | |
|---|---|
| Display Type Supported | TV |
| Minimum Screen Size Supported | 55" |
| Maximum Screen Size Supported | 85" |
| Maximum Load Capacity | 115 lb |
| Tilt Angle | 0° to 3° |
| Finishing | Powder Coated |
| Application/Usage | TV |
| Features |
|
Physical Characteristics | |
|---|---|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Maximum Horizontal Mounting Pattern | 23.62" |
| Maximum Vertical Mounting Pattern | 15.83" |
| Color Family | Black |
| Product Color |
|
| Product Material | Steel |
| Height | 36.99" |
| Width | 25.59" |
| Depth | |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Certifications & Standards | RoHS, VESA |
| Manufacturer Product Class | Stand |
| Assembly Required | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Weight (Approximate) | 22.90 lb |
|---|
